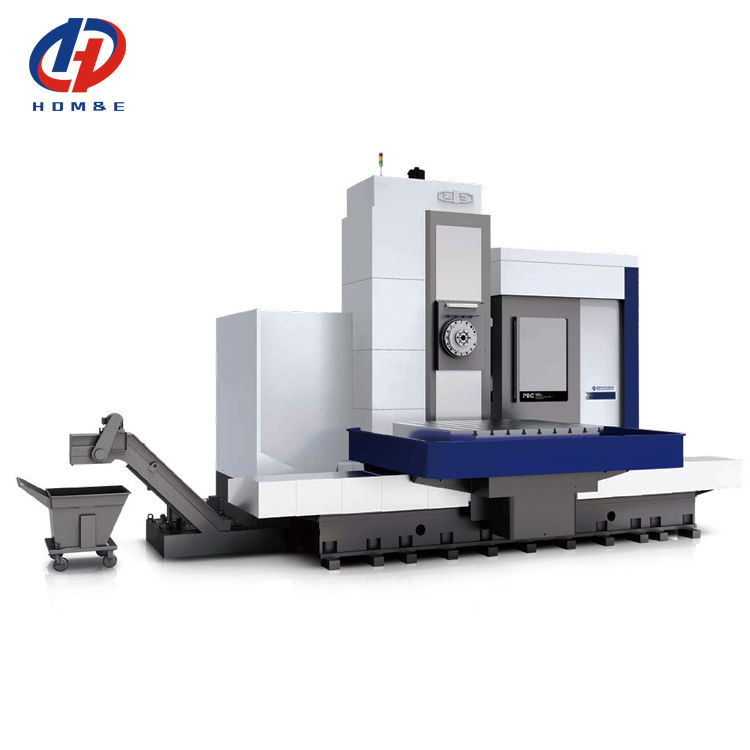

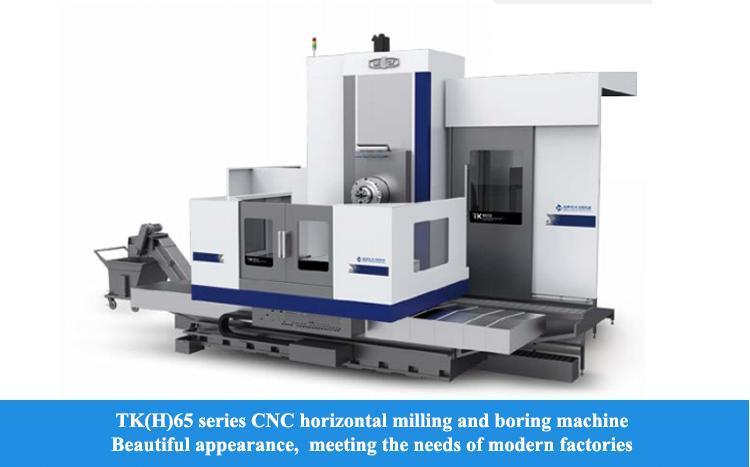

SMTCL TK6516 Heavy Cutting Spindle Diameter 160mm CNC Horizontal Milling and Boring Machine

Marca: SMTCL
Número do modelo: TK6516
Local de Origem: CHINA
Certificação: CE ISO certification
Quantidade mínima de pedido: 1
Capacidade de fornecimento: 50 conjuntos por mês
Tag

Máquinas de perfuração horizontais do Readout de Digitas

máquina de perfuração do assoalho 800r/min

Máquinas de perfuração horizontais do ISO

Detalhes do produto

Marca: SMTCL Número do modelo: TK6516
CNC ou não: CNC Palavra -chave: Máquina de perfurar de fresagem CNC horizontal
Velocidade do eixo: 10 a 1500 r/min Dimensão da bancada: 1600×1800 mm
Carga máxima da bancada de trabalho: 10/20/30 T Viagem transversal X da bancada de trabalho: 3 mm ou mais
Viagem vertical Y do cabeçote: 2000/2500/3000 mm Viagem longitudinalZ da coluna: 2000 mm
Viagem W do eixo: 1000 mm
Destacar

Strong processing capacity

,

High-precision guarantee

,

High-efficiency cutting performance

Descrição do produto

SMTCL TK6516 Heavy Cutting Spindle Diameter 160mm CNC Horizontal Milling and Boring Machine 0

Product Description:

SMTCL TK6516 Heavy Cutting Spindle Diameter 160mm CNC Horizontal Milling and Boring Machine
High-rigidity CNC horizontal milling and boring machine can meet the heavy cutting demand, and it is widely used in general machinery, engineering machinery, mining, electric power and other industries.
Structural features:The machine tool is in a structure of T-shaped layout and single column side hanging box
Basic parts:Cast with high-strength cast iron material and resin sand process, with excellent stability and shock resistance
Spindle group:he spindle is driven by precision gear group meshing, with smooth operation and high accuracy

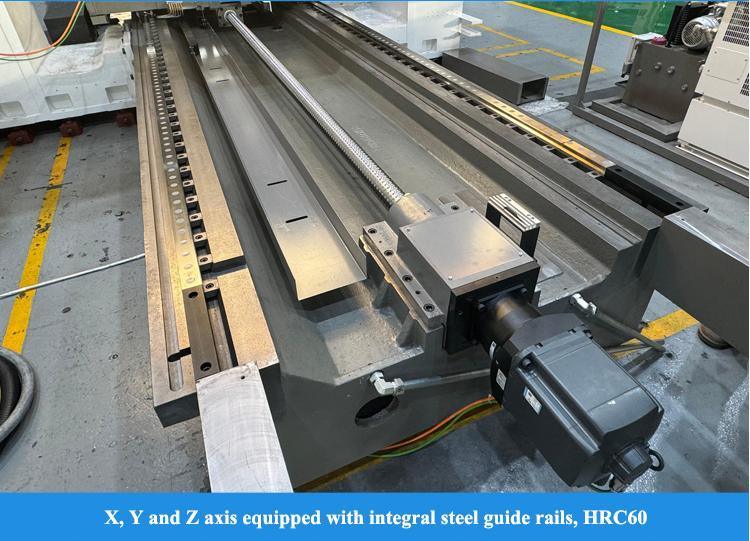

Guide rail:X-axis, Y-axis and Z-axis are equipped with the integrated steel-inserted guide rail to meet the rigid demand of heavy cutting
Drive:The X-axis and Z-axis adopt servo motor to drive the ball lead screw via the reduction gearbox,the Y-axis adopts the servo motor to directly drive the ball lead screw, and the B-axis is the classic double worm gear & worm structure

Product Features:

1. Spindle diameter 160mm, torque 4500Nm, strong heavy-duty cutting capability
2. Worktable load capacity 30 tons, X-axis travel 4 meters, suitable for extra-large workpieces
3. Siemens 828D system with 5-axis linkage, positioning accuracy 0.028mm/1000mm
4. 16-tool magazine + quick tool change, tool change time only 6 seconds, significantly improving efficiency
5. Integral aged bed + super-hard guideway, long-term operation precision stability over 95%

Product Details:

SMTCL TK6516 Heavy Cutting Spindle Diameter 160mm CNC Horizontal Milling and Boring Machine 1

Product Paramenters:
ltems
Unit
TK(H) 6516
TK(H)P 6516

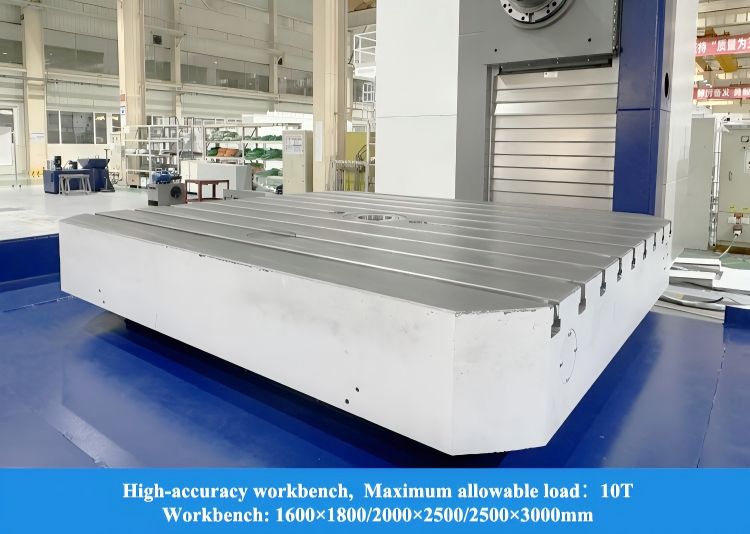

Workbench dimension
mm
1600×1800/ ; 2000×2500 ; 2500×3000
Maximum load of workbench
T
10/20/30

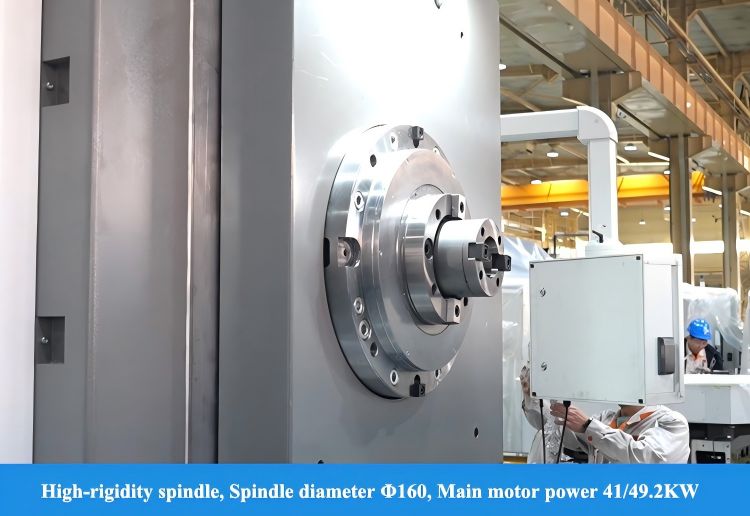

Spindle diameter
mm
φ160
Facing head diameter
mm
-
900
Tool shank specification

JT50/BT50
Spindle speed
r/min
10-1500
Power of main motor
kW
41/49.2
Maximum torque of spindle
Nm
3300/4000
Transverse travel X of workbench
mm
3000/3500/4000
Vertical travel Y of headstock
mm
2000/2500/3000
Longitudinal travel Z of column
mm
2000
Travel W of spindle
mm
1000
Travel U of facing head slide block
mm
-
330
Feeding speed
X,Y,Z
mm/min
1-6000
W
mm/min
1-3000
U
mm/min
-
1-3000
B
r/min
0-1
Rapid speed
X,Y,Z
m/min
10
W
m/min
3
U
m/min
-
3
B
r/min
1
Positioning accuracy
X,Y,Z
mm
X:0.028/0.022(grating scale)
Y:0.02/0.016(grating scale)
Z:0.02/0.016(grating scale)
W
mm
0.018
U
mm
-
0.032
B
''
8, 4×90°；6
Repositioning accuracy
X,Y,Z
mm
0.013
W
mm
0.016
U
mm
-
0.018
B
''
6

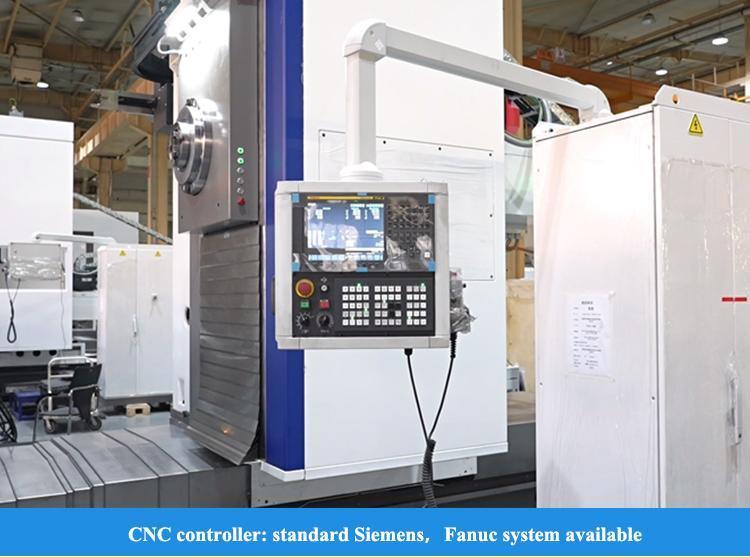

CNC system


SIEMENS 828D
Standard configuration:
SIEMENS 828D
Spindle blowing function
Guide rail protection
Cabinet air conditioner
Cooling and chip removal
Imported ball lead screw
Operator protection
Centralized lubrication
B-axis circular optical grating
Water gun/air gun Headstock oil cooler
Workbench water tray
Anchor cushion iron
Imported spindle bearings
Y-direction armor protection
Floodlight
Optional configuration:

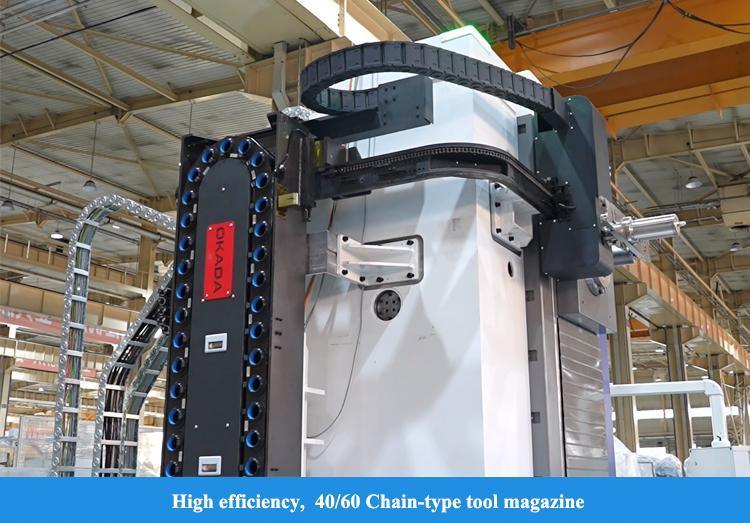

40/60 tool magazine
Pump station oil cooler
FANUC0I/31I system
Accessory milling head
Adaptive control
Workbench area protection
Tool load abnormality detection
X/Y/Z-axis grating ruler
Energy saving package
Spindle internal cooling
SIEMENS one
