Name: TPX6113 Automatic Horizontal CNC Boring Milling Machine Horizontal Boring Machines
Brand: Shanghai HD M&E Tech Co., Ltd.
SKU: TPX6113
Availability: InStock

Casa > produtos > Máquina de perfurar e moer horizontal >

TPX6113 Automatic Horizontal CNC Boring Milling Machine Horizontal Boring Machines

Horizontal Boring Machines

boring Milling Machine

boring Machines

Lugar de origem:

China

Marca:

SMTCL

Certificação:

ISO CE

Número do modelo:

TPX6113

Contacte-nos

Solicite um orçamento

Detalhes do produto

Nome:

Máquina de perfurar e moer horizontal

Modle:

TPX6113

Tamanho da mesa de trabalho:

1600X1400

Carga da mesa de trabalho:

8000 kg

Diâmetro do fuso:

130mm

Torque máximo do fuso:

3136 Nm

Principal principal:

7.5kW

Velocidade do fuso ((r/min):

4-800 r/min

Diâmetro da cabeça de revestimento:

750mm

Viagem máxima no eixo X/Y/Z:

1600/1400/2000 mm

Termos de pagamento e envio

Quantidade de ordem mínima

1 conjunto

Preço

Negociável

Detalhes da embalagem

Pacote de madeira padrão adequado para frete marinho de longa distância

Tempo de entrega

30-45 dias

Habilidade da fonte

20 conjuntos por mês

PRODUTOS RELACIONADOS

Vídeo

TPX6113 Automatic Horizontal CNC Boring Milling Machine Horizontal Boring Machines

Obtenha o melhor preço

Vídeo

SMTCL pesado PBC110 Sistema SIEMENS CNC Tipo de piso horizontal 5 eixos fresagem máquina de perfurar

Obtenha o melhor preço

Vídeo

SMTCL PBC130s Máquina de fresagem pesada CNC Dois trilhos de orientação lineares e um trilho de orientação duro

Obtenha o melhor preço

Vídeo

SMTCL Heavy Duty 5 Axis Milling Boring Machine PBC 110f Sistema SIEMENS Máquina de perfurar e frear CNC

Obtenha o melhor preço

Contacte-nos

+8613916455787

sales@huidijd.com

86-021-61195255

Contacte agora

Descrição do produto

TPX6113 Automatic Horizontal CNC Boring Milling Machine Horizontal Boring Machines 0

Product Description

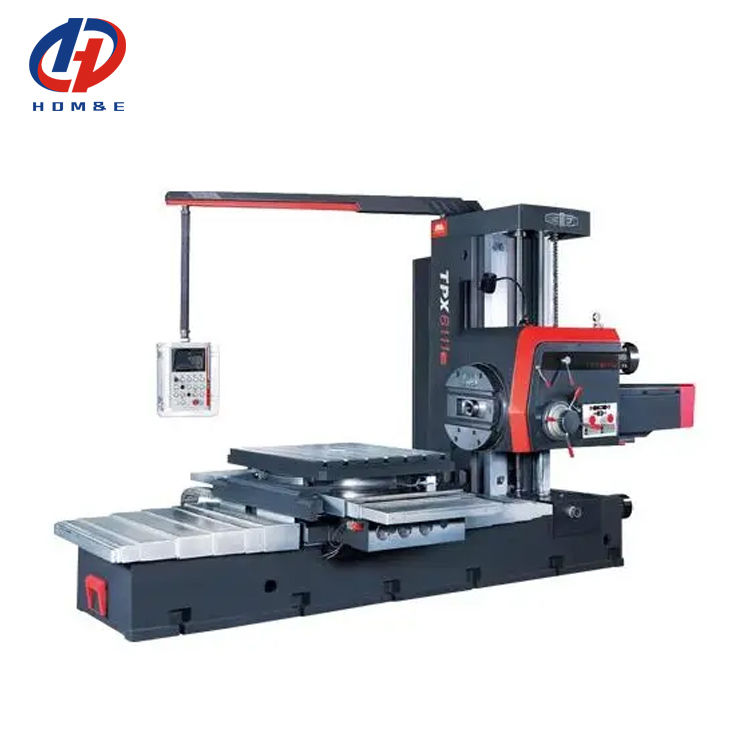

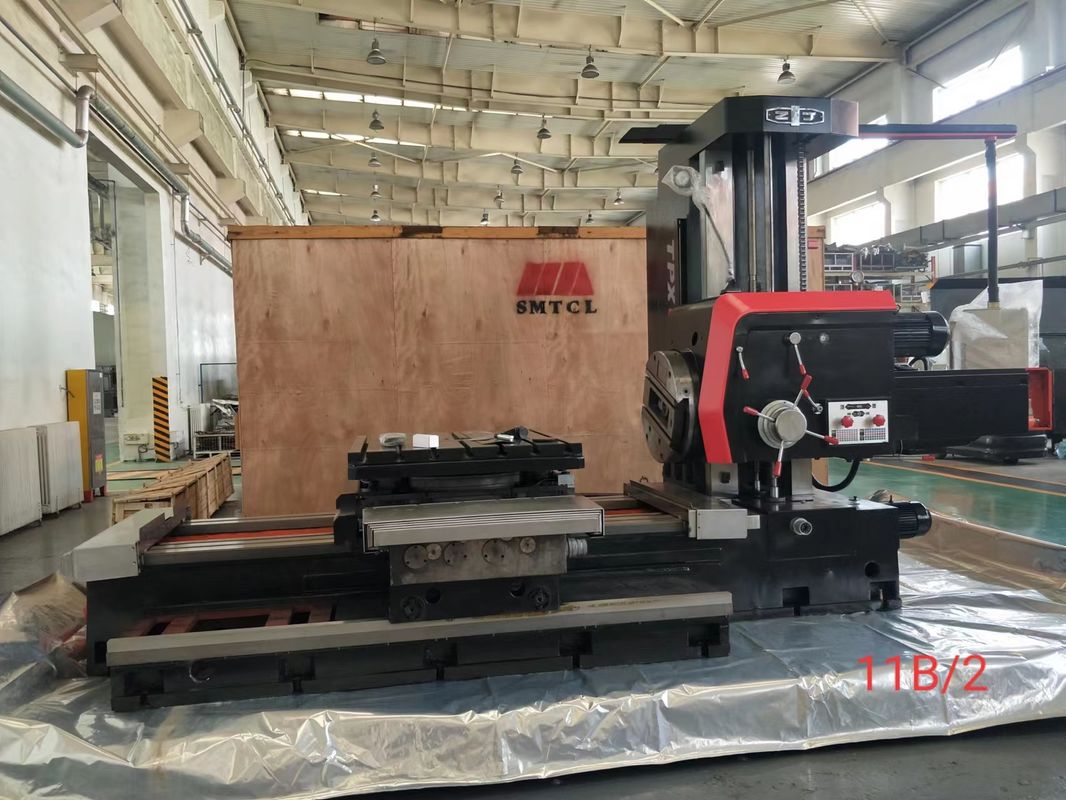

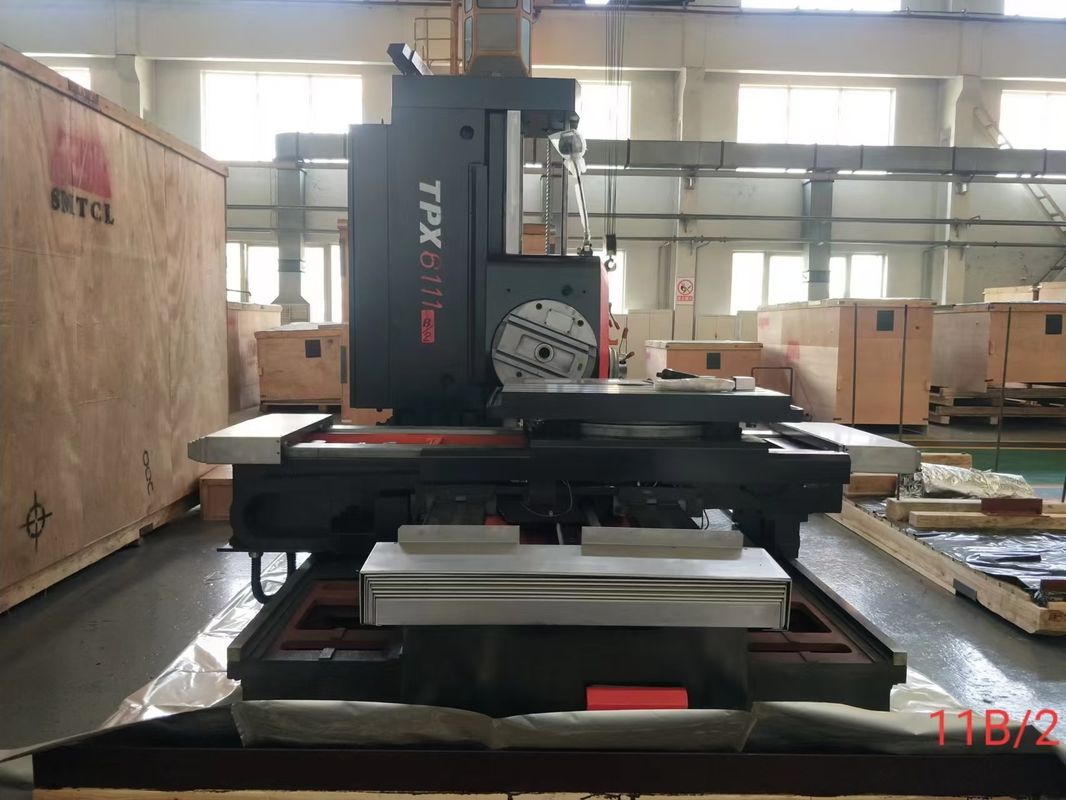

TPX6113 Automatic Horizontal CNC Boring Milling Machine Horizontal Boring Machines

PLC Horizontal Boring and Milling Machine TPX6113 Heavy Horizontal Milling Boring Machine With Digital

The TPX series horizontal milling and boring machines are based on a classic design, suitable for rough and finished boring, capable of milling large and box type components.They excel at inner hold boring,cylindrical turning and grooving by radial feed of facing plate.A 4x90 optical positioning device allows for machining accuracy when turninglarge pieces.The precision digital read out measurement systems ensures accuracy of coordinates and lineation.

Product Features

High QualitySpindle

The three-layer mechanism ensures high rotational accuracy and thethree-point support provides high rigidity and accuracy.

User-friendly Layout

The hanging operation panelprovides flexible and convenient centralized operation. Hydraulic preselection controls speed and feed rate

Accurate & Stable Optical Aiming

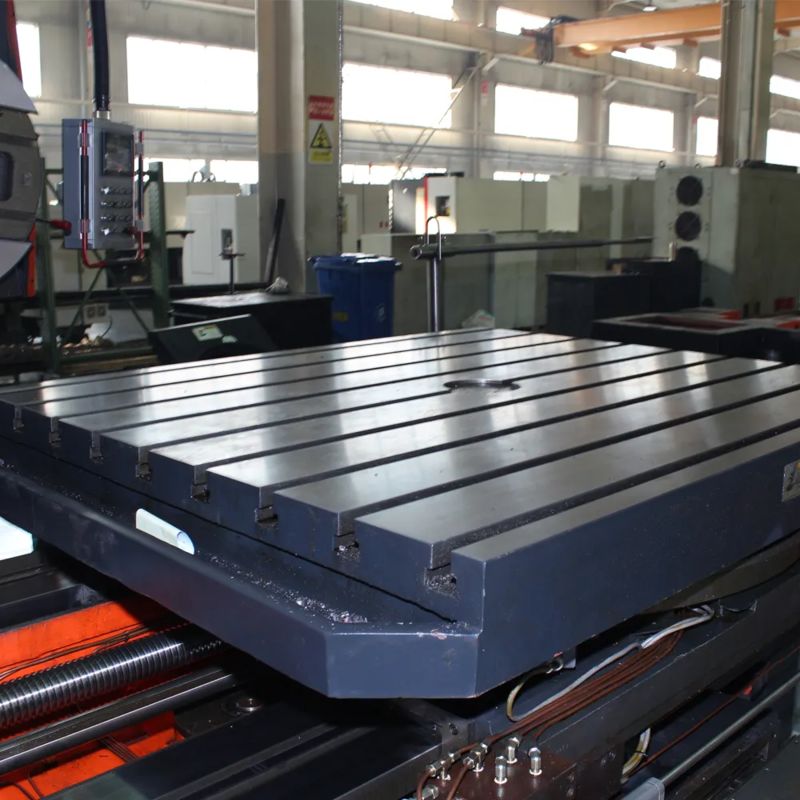

The worktables 4×90 oplicalpositioning device ensures high posiioning accuracy and high precision turnover.

Electro-hydraulic Interlock

Al moving components feattre electro hydraulic intetlocks.Only one component moves while others are clamped automatically.

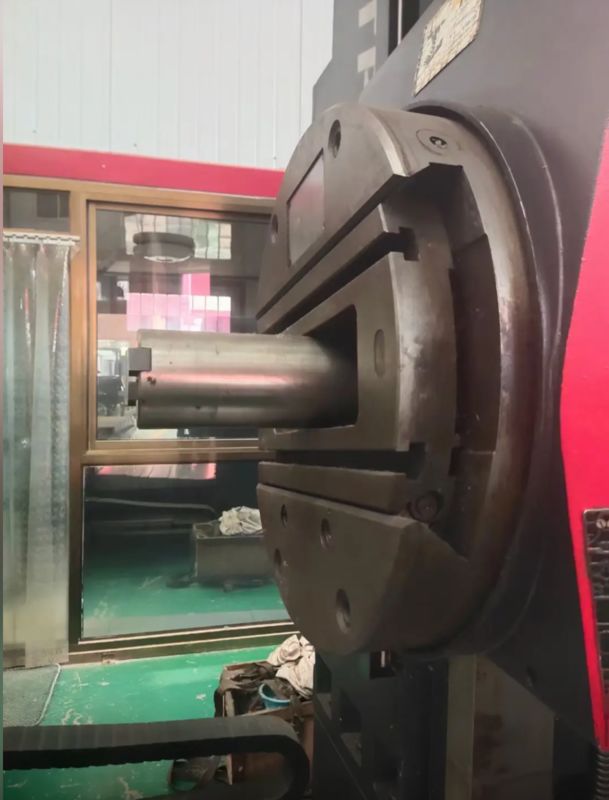

Workpiece Sample: Flange typecomponent

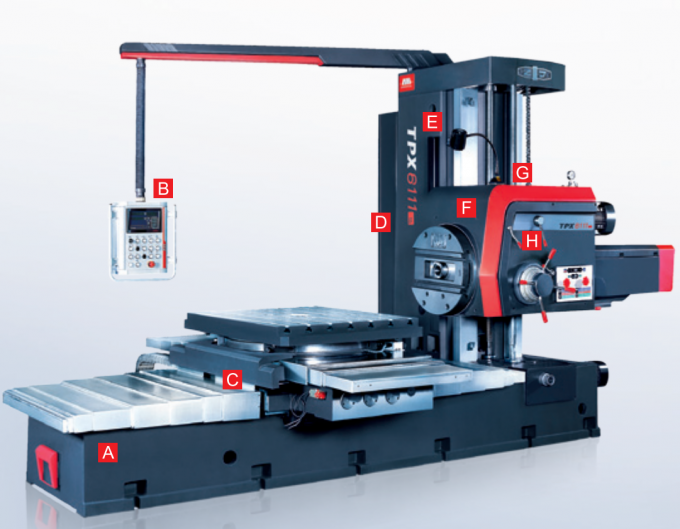

Product Details

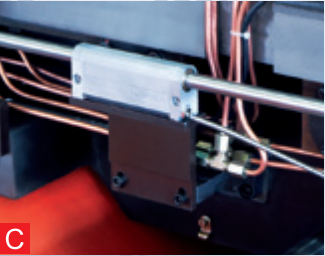

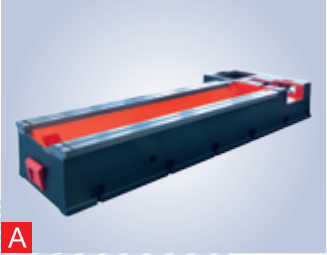

Bed Our high quality castings feature polished and hardened guideways. The castings are internally reinforced to maximize rigidity and stability.

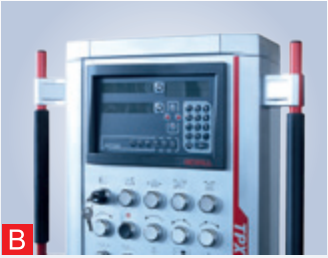

Control Panel Available in hanging or swing-arm arrangements, the control panel iseasy to use and reduces operator fatigue.

Internal Design Easy to install, steady,and precise with a fully-enclosed structure toprevent oil, coolant, and chip intrusion.

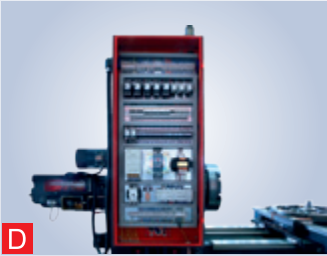

Control System PLC

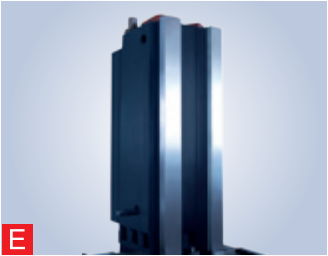

Column Made of high quality castings with ground and hardened guideways, the optimized structural design easily supports the assembly

Protective Enclosure Welded high qualitysteel plates form an excellent protective cover.

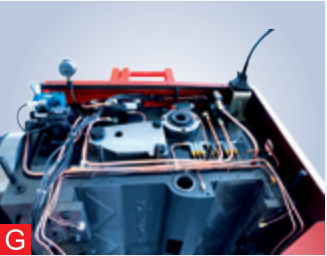

Hydraulic System Pressure adjusted viarelief valve. Variable speed achieved via arotary valve.

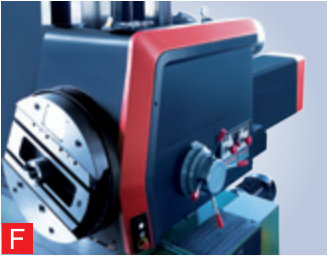

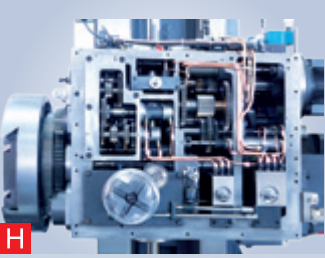

Headstock Primary speed is controlled via switches on the headstock itself, a variety of rotational speeds are possible

Product Paramenters

Item		Unit	TPX6113	TPX6113/2
Spindle	Diameter	mm	φ130	φ130
	Taper		Metric 80(ISO7:24No50)	Metric 80(ISO7:24No50)
	Max Torque	N.m	3136	3136
	Max Axial Thrust	N	31360	31360
	Speed settings		24	24
	Speed Range	r/min	4-800	4-800
	Main Motor Power	kw	15	15
Facing Plate	Max Torque	N.m	4900	4900
	Diameter	mm	Φ750	Φ750
	Speed Range	r/min	2.5-125	2.5-125
	Speed settings		18	18
Worktable	Dimensions	mm	1600×1400	1600×1400
	Max Lode	kg	8000	10000
	T-slot size	mm	28	28
	T-slot count		9	11
Mahining range	X-axis max travel	mm	1600	2000
	Y-axis max travel	mm	1400	1800
	Z-axis max travel	mm	2000	2000
	W-axis max travel(spindle)	mm	900	900
	U-axis max travel(facing plate slide)	mm	250	250
	B-axis rotary angle	°	360	360
	Min distance between spindle centerline and worktable	mm	0	0
Feed	Rapid traverse	mm/min	X/Y/Z/W:2500	X/Y/Z/W:2500
Feed	Feed range of axis for each spindle revolution	mm/rev	0.05-8/0.01-2(X/Y/Z/W)	0.05-8/0.01-2(X/Y/Z/W)
Accuracy	Linear measurement reading accuracy(X/Y/Z-axis)	mm	0.005	0.005
Accuracy	Linear measurement reading accuracy(B-axis)	°	0.001	0.001
General specs	Dimensions(L×W×H)	mm	6995x3647x3442	7030x4665x3800
General specs	Mahine weight	kg	24000	28000

OUR Service

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory

FAQ

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
