Name: 1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe
Brand: Shanghai HD M&E Tech Co., Ltd.
SKU: CW61125
Availability: InStock

Casa > produtos > Máquina convencional do torno >

1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe

Guide Rall Width Of 970mm

Max.length of wordpiece 20m

Spindle bore 130mm

Lugar de origem:

CHINA

Marca:

Certificação:

CE ISO

Número do modelo:

CW61125

Contacte-nos

Solicite um orçamento

Detalhes do produto

Marca:

Tipo:

CW61125

Nome do produto:

Torno manual pesado

Diâmetro máximo do balanço sobre o leito:

1250 mm

Diâmetro máximo do balanço sobre o vagão:

900mm

Largura da cama:

970mm

Duração máxima da peça:

1000mm-15000mm

Diâmetro de furo do eixo:

ф130mm

Termos de pagamento e envio

Quantidade de ordem mínima

1 conjunto

Preço

Negociável

Detalhes da embalagem

Pacote de madeira padrão para transporte marítimo

Tempo de entrega

30 dias

Habilidade da fonte

50 conjuntos por mês

PRODUTOS RELACIONADOS

Vídeo

Torno Horizontal Ordinário Pesado CW6180F, Guia de Alta Rigidez, Largura 600mm, Torno Manual de Chão

Obtenha o melhor preço

Vídeo

SMTCL Torno manual horizontal CA6140 1000mm Gap Bed Máquina de torno manual

Obtenha o melhor preço

Vídeo

SMTCL 2000mm Manual Gap Bed Lathe CA6150B/A Manual Metal Turning Lathe Machine

Obtenha o melhor preço

Vídeo

Torneio Universal CW6263B Torneio de Cama de Gap de Alto Desempenho Torneio Manual Horizontal Grande

Obtenha o melhor preço

Contacte-nos

+8613916455787

sales@huidijd.com

86-021-61195255

Contacte agora

Descrição do produto

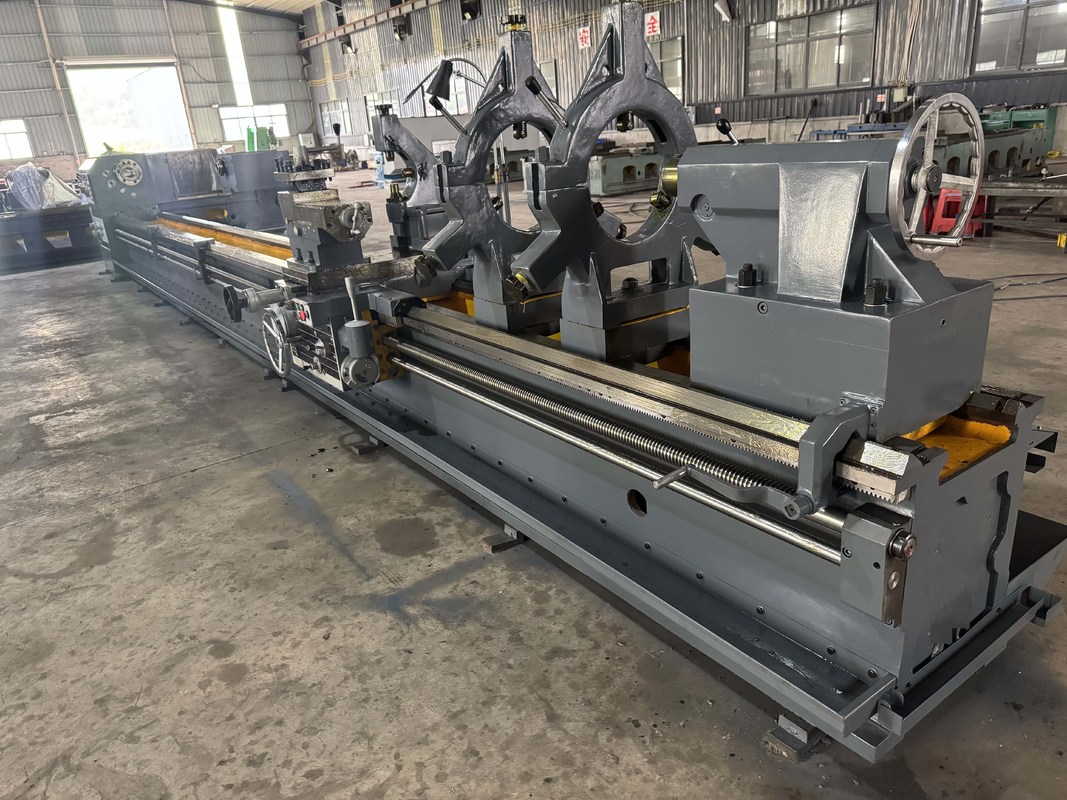

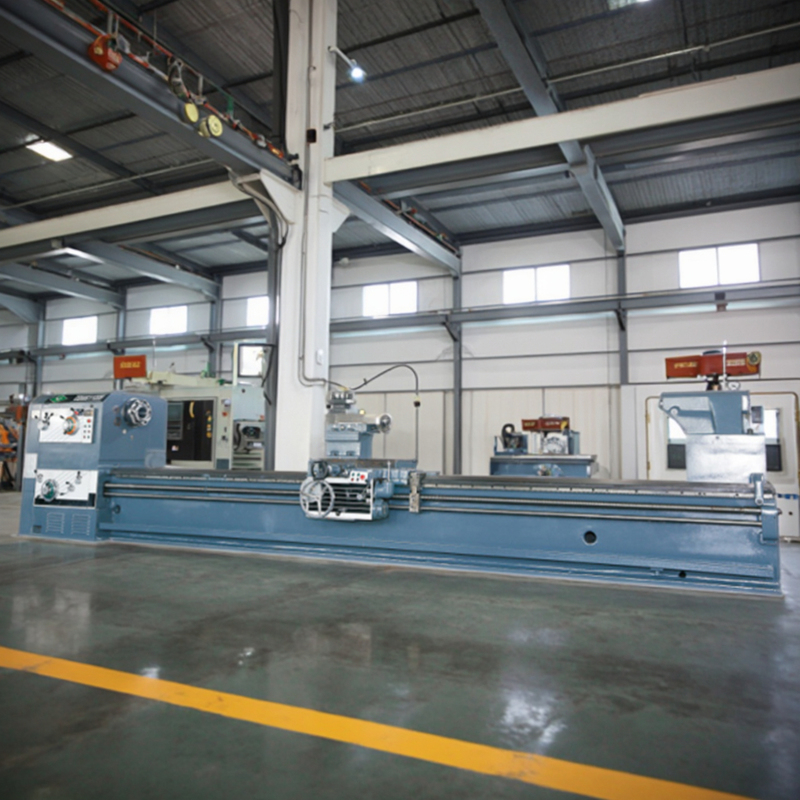

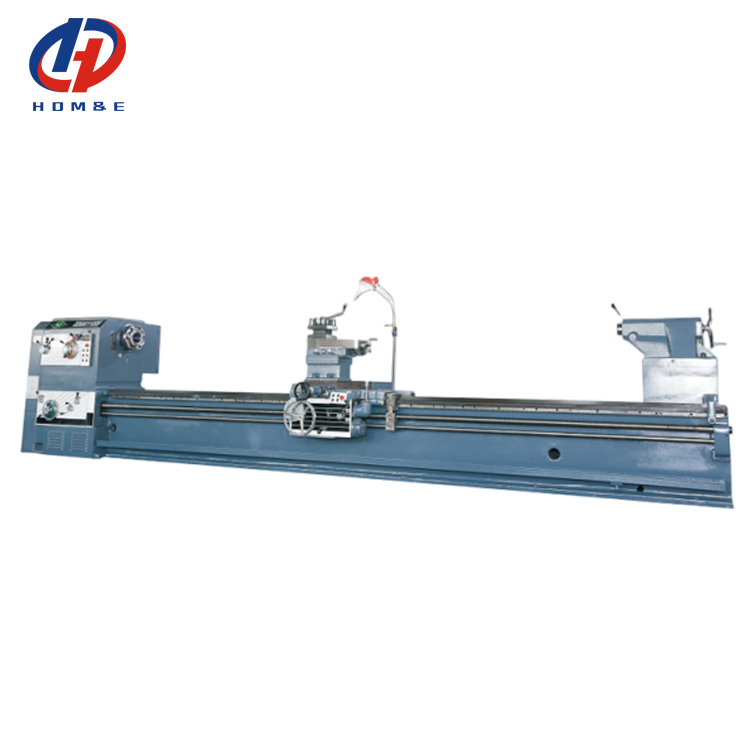

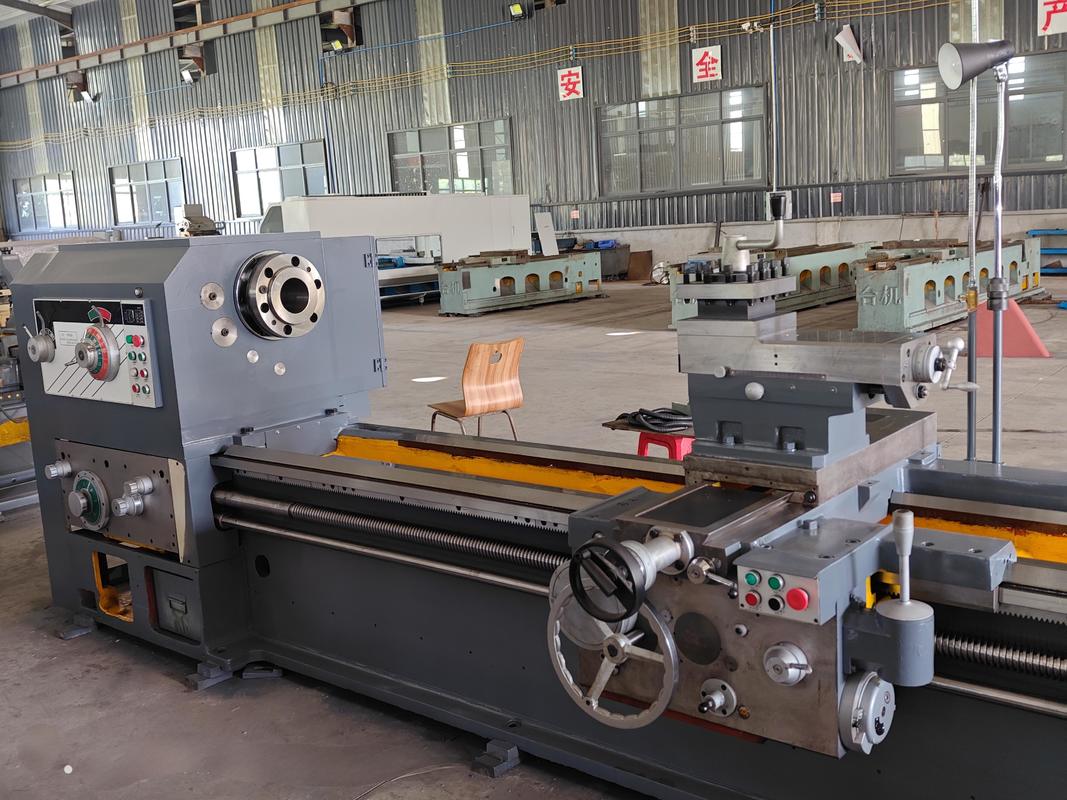

1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 0

Product Description:

1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe

Features of this machine: This machine tool is a regular horizontal lathe, which adopts advanced processing and assembly technology, highprecision, good stablity, high rigidity, high speed, large through-hole diameter, and wide range of use. lt is designed for turing blackmetal, non-ferrous metal, and some non-metalic material parts with hard alloy and hich-speed steel cuting tools. This machine toois suitable for rough and fine machining of various complex rotary surfaces, and can also perform cuting, boring, threading and other machining.

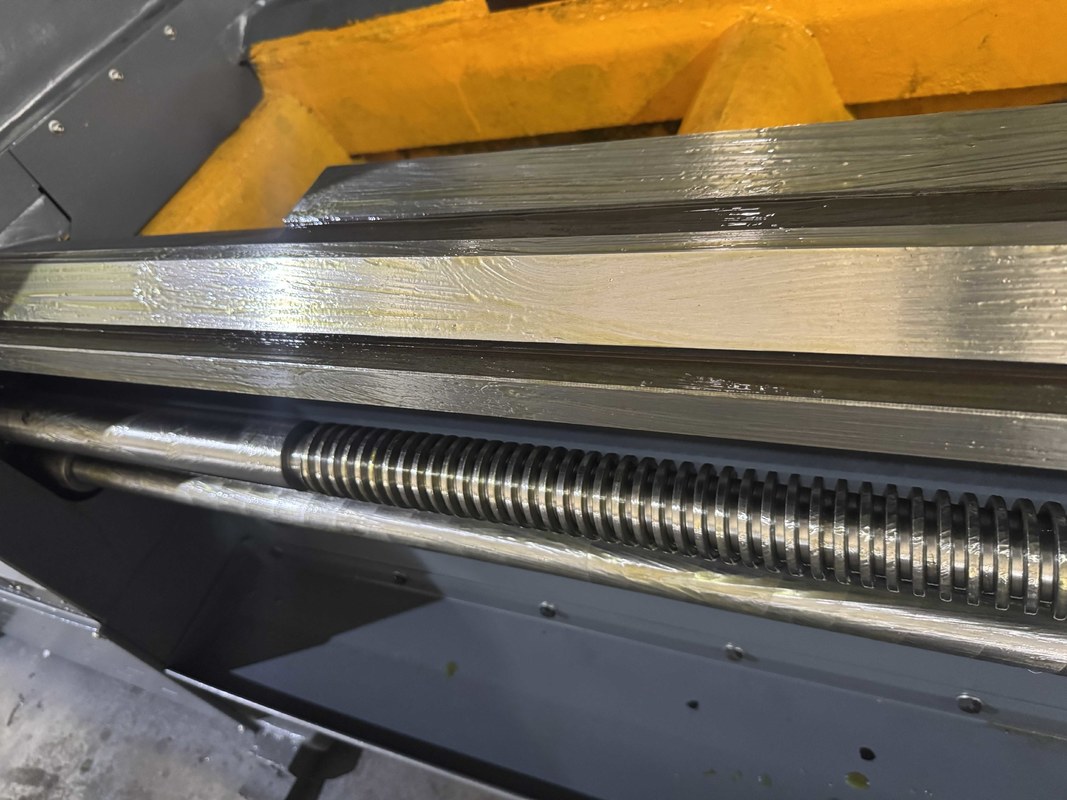

The main structure of this machine tool is a solid loor type bed body, plastic coated guide rall surace, good wear resistance, and guide rallwidth of 970mm. The guide rall adopts medium frequency Quenching, processing length can reach up to 20 meters. The feed adopts theprinciple of mechanicaltransmission.

Product Details:

Product Paramenters:

Project	Main parameter	Unit	CW61125
Plus work fan around	Max.swing over bed	mm	1250
	Max.swing over carriage	mm	900
	Max.length of wordpiece	mm	1000/1500/2000/3000/4000/5000/6000/8000/10000/12000/15000
	Max.cutting length	mm	850/1350/1850/2850/3850/4850/5850/6850/7850/9850/11850/14850
	Two top max. weight bearing capabilities	kg	10000(15000)
Spindle	Spindle bore	mm	130
	Taper hole in spindle	mm	1:20(140 Metric)
	Main hole in spindle	ISO	A2-15
	Diameter of the front bearing position of the spindle	mm	220
	Number of types of spindle rotation and rotational speed	r/min	21 kinds 3.15-315
	Number of spindle reversals and rotational speed	r/min	21 kinds 5-400
	Power of main motor	kw	22(30)
	Manual chuck diameter	mm	1000
Bed structure	Width of bed	mm	970
	Bed structure	mm	Whole floor bed frame
	Lateral feed	mm	730
	Vertical feed	mm	1000-15000
	Rapid horizontal/vertical movement	m/min	4/8
Enter to fanaround	Longitudinal feedes 64 Kinds	mm/(in/r)	0.1~12
	Transverse feeds 64kinds	mm/(in/r)	0.05~6
	64 feed rates on the upper tool rest	mm/(in/r)	0.025-3
	Metric threads 56 kinds	mm	1~240
	Whitworth threads 56kinds	tpi	30-1/4
	Module threads 53 Kinds	mm	0.5~60
	Diametral threads 24 kinds	D.P.	60-0.5
	The ratio of the feed rate of the upper tool holder to the longitudinal feed rate	mm	1/4
	Machine tool screw pitch	mm	12
	Fast motor power	kw	1.5
Tailseat	Diameter of tailstock sleeve	mm	160(220)
	Tail socket travel	mm	300
	Tailstock sleeve taper hole	mm	Morse 20
	Top socker taper(metric)	metric	Number 6

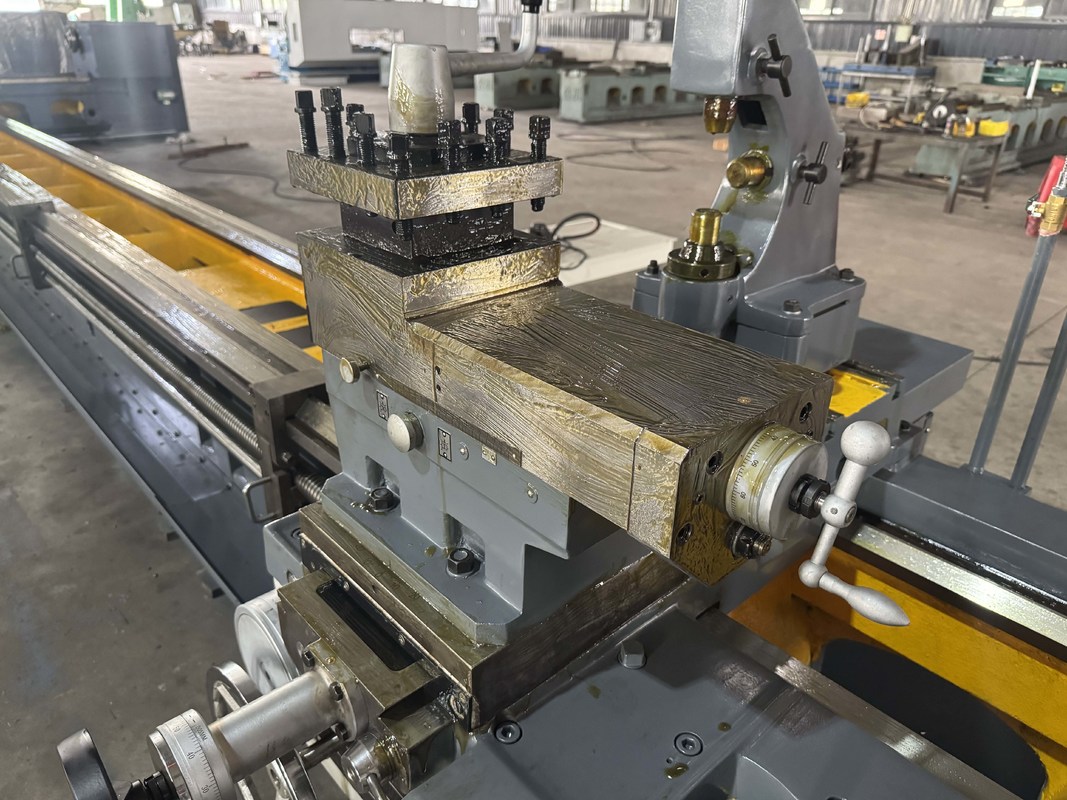

Tool carrier	Knife holder form	type	vertical 4 station
	Cutting tool cross-sectional dimensions	type	45×45
	Rotation angle of knife holder		±90°
	Max. lateral travel of the lower knife holder	mm	500
	Max. lateral travel of upper knife holder	mm	300
	Quick vertical/horizontal movement speed of the tool holder	mm	3740/1870
	Quick movement speed of small knife holder	mm/min	935
	Cooling pump motor power	mm/min	0.125
Inspection items	Processing accuracy	kw	IT6/IT7
	Processing roundness	level	0.008
	Processing workpiece cylindricity	mm	0.03/300
	Processing workpiece flatness	mm	0.033/500
	Roughness	mm	Ra1.6
	Spindle end face	mm	0.008
Machine tool standard accessories: spindle and tail frame top sleeve: Φ1000 four jaw chuck: Adjusting pad iron; Anchor bolt; Cool the water tank. Note:3000mm and above 3000mm with 50-600mm center frame;Φ50-250mm tool holder Optional accessories:Φ1250 four jaw chuck:Φ250-800mm center frame
