Name: SMTCL PBC130m Horizontal Boring Milling Machine CNC Cylinder Boring Machine
Brand: Shanghai HD M&E Tech Co., Ltd.
SKU: PBC130M
Availability: InStock

Casa > produtos > Máquina de perfurar e moer horizontal >

SMTCL PBC130m Horizontal Boring Milling Machine CNC Cylinder Boring Machine

quick tool change

super-hard guideway

strong heavy-duty cutting capability

Lugar de origem:

CHINA

Marca:

SMTCL

Certificação:

CE ISO certification

Número do modelo:

PBC130M

Contacte-nos

Solicite um orçamento

Detalhes do produto

Marca:

SMTCL

Número do modelo:

PBC130M

CNC ou não:

CNC

Palavra -chave:

Máquina de perfurar de fresagem CNC horizontal

Velocidade do eixo:

10-2000 r/min

Dimensão da bancada:

1400×1600 mm

Carga máxima da bancada de trabalho:

10 t

Viagem transversal X da bancada de trabalho:

2000 mm

Viagem vertical Y do cabeçote:

1600 mm

Viagem longitudinalZ da coluna:

1600 mm

Viagem W do eixo:

800 mm

Termos de pagamento e envio

Quantidade de ordem mínima

Detalhes da embalagem

A caixa de madeira, a caixa de lata, outras embalagens navegáveis.

Tempo de entrega

45-60 dias

Termos de pagamento

T/T, L/C, Western Union

Habilidade da fonte

50 conjuntos por mês

PRODUTOS RELACIONADOS

Vídeo

SMTCL PBC130m Horizontal Boring Milling Machine CNC Cylinder Boring Machine

Obtenha o melhor preço

Vídeo

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine

Obtenha o melhor preço

SMTCL T-Force indústrias de energia eólica Máquina de Fresagem e Furação de Piso CNC de alta precisão

Obtenha o melhor preço

Vídeo

SMTCL TK6516 Heavy Cutting Spindle Diameter 160mm CNC Horizontal Milling and Boring Machine

Obtenha o melhor preço

Contacte-nos

+8613916455787

sales@huidijd.com

86-021-61195255

Contacte agora

Descrição do produto

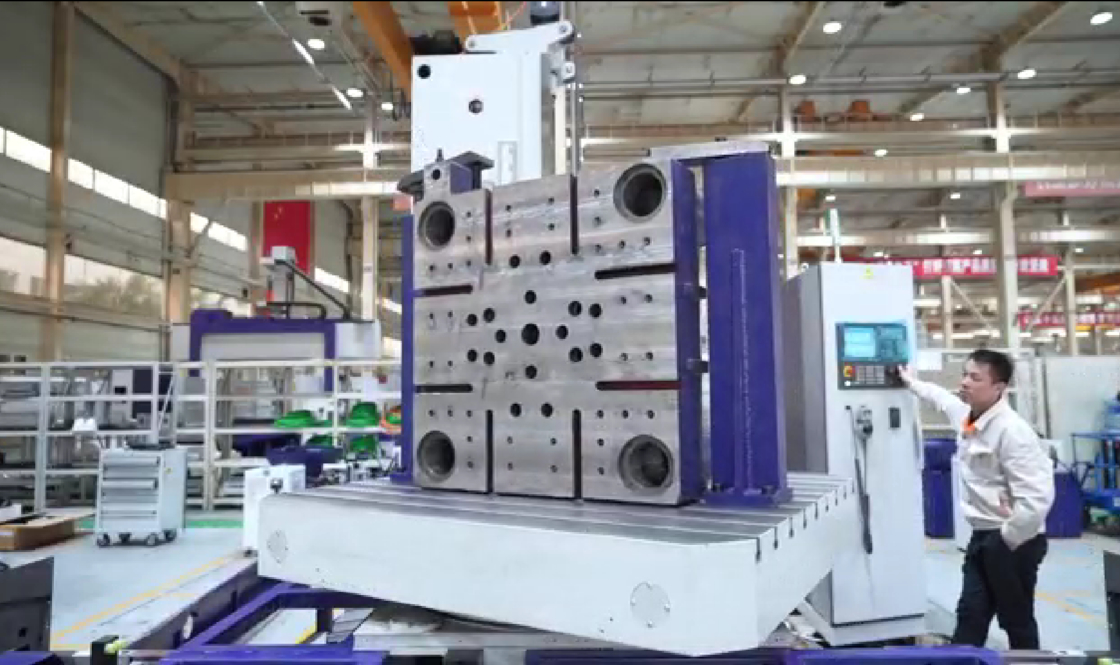

SMTCL PBC130m Horizontal Boring Milling Machine CNC Cylinder Boring Machine 0

Product Description:

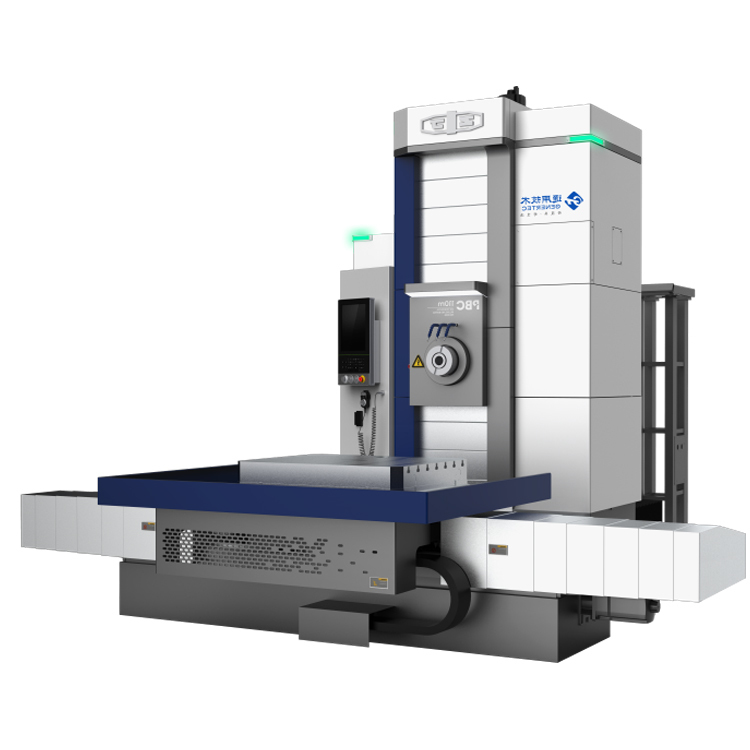

SMTCL PBC130m Horizontal Boring Milling Machine CNC Cylinder Boring Machine

It is a general-purpose CNC horizontal milling and boring machine, and it is widely used in general machinery, engineering machinery, transportation and other industries.

Structural features:The machine tool is in a structure of T-shaped layout and single column side hanging box

Basic parts:Cast with high-strength cast iron material and resin sand process, with excellent stability and shock resistance

Spindle group:The spindle is driven by precision gear group meshing, with smooth operation and high accuracy

Guide rail:Y-axis and Z-axis adopt the two-linear & one-hard guide rail, taking into account both speed and rigidity

Drive:The X-axis and Z-axis adopt servo motor to drive the ball lead screw via the reduction gearbox, the Y-axis adopts the servo motor to directly drive the ball lead screw, and the B-axis is the classic double worm gear & worm structure.

Product Features:

1,Powerful Power Output: Spindle diameter reaches 130mm, maximum milling spindle torque is 2600 Nm, and power ranges from 25 to 30kW. It handles high-intensity machining tasks with ease, enabling smooth heavy-duty cutting.

2,Excellent Load-Bearing Capacity & Travel: Worktable load capacity is up to 15,000kg, suitable for large and heavy workpieces. X-axis travel offers options of 2000mm, 3000mm, and 4000mm; Y-axis travel ranges from 1600 to 2500mm; Z-axis travel ranges from 1600 to 2000mm, providing a wide machining range.

3,High Precision Guarantee: Adopts linear guides and ball screws, ensuring fast rapid traverse speed of each axis and accurate positioning. Equipped with well-known CNC systems such as Fanuc or Siemens (e.g., SIEMENS 828D) to meet strict machining precision requirements.

4,Efficient Tool Change System: Features automatic tool change function. the efficient tool change mechanism reduces auxiliary machining time and improves overall machining efficiency.

5,Stable & Reliable Structure: The machine adopts a T-shaped layout of longitudinal and transverse machine beds, offering excellent rigidity, stable performance, and high precision. It can also be equipped with various accessories such as CNC faceplates and vertical CNC turntables according to customer needs to expand the range of machining processes.

Product Details:

Product Paramenters:

ltems		Unit	PBC 130m	PBC 130fm
Workbench dimension		mm	1400×1600/ 1600×1800/ 2000×2000
Maximum load of workbench		T	10
Spindle diameter		mm	φ160
Spindle taper hole			IS0 7:24 N0.50
Tool shank specification			JT50/BT50
Spindle speed		r/min	10-2000
Facing head rotary speed		r/min	-	10-125
Power of main motor		kW	25/30
Maximum torque of spindle		Nm	2500/3000
X-axis stroke		mm	2000/3000/4000
Y-axis stroke		mm	1600/2000
Z-axis stroke		mm	1600/2000
Spindle stroke W		mm	8000
Facing head sliding block stroke U		mm	-	200
Workbench rotation B		°	0.01×360°
Feeding speed	X,Y,Z	mm/min	1-9000
	W	mm/min	1-3000
	U	mm/min	-	1-1000
	B	r/min	0-1
Rapid speed	X,Y,Z	m/min	10
	W	m/min	3
	U	m/min	-	3
	B	r/min	1
Positioning accuracy	X,Y,Z	mm	0.018/0.015(grating scale)	0.018/0.015(grating scale)
	W	mm	0.016
	U	mm	-	0.032
	B	''	12/8(gratingscale), 4×90°；6	12/8(gratingscale), 4×90°；6
Repositioning accuracy	X,Y,Z	mm	X/Z:0.008 ; Y:0.013
	W		0.014
	U	mm	-	0.018
	B	''	6
CNC system			SIEMENS 828D	SIEMENS 828D
Standard configuration: SIEMENS 828D Cooling and chip removal Centralized lubrication Headstock oil cooler Imported spindle bearings Spindle blowing function Workbench water tray Y-direction armor protection Guide rail protection Operator protection Air gun/water gun Anchor cushion iron Floodlight Cabinet air conditioner			Optional configuration: 24/40/60 tool magazine Accessory milling head Workbench area protection X/Y/-axis grating ruler Spindle internal cooling Pump station oil cooler Adaptive control Tool load abnormality detection Energy saving package SIMENS one FANUC 0I/31I system

OUR Service:

1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory:

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
